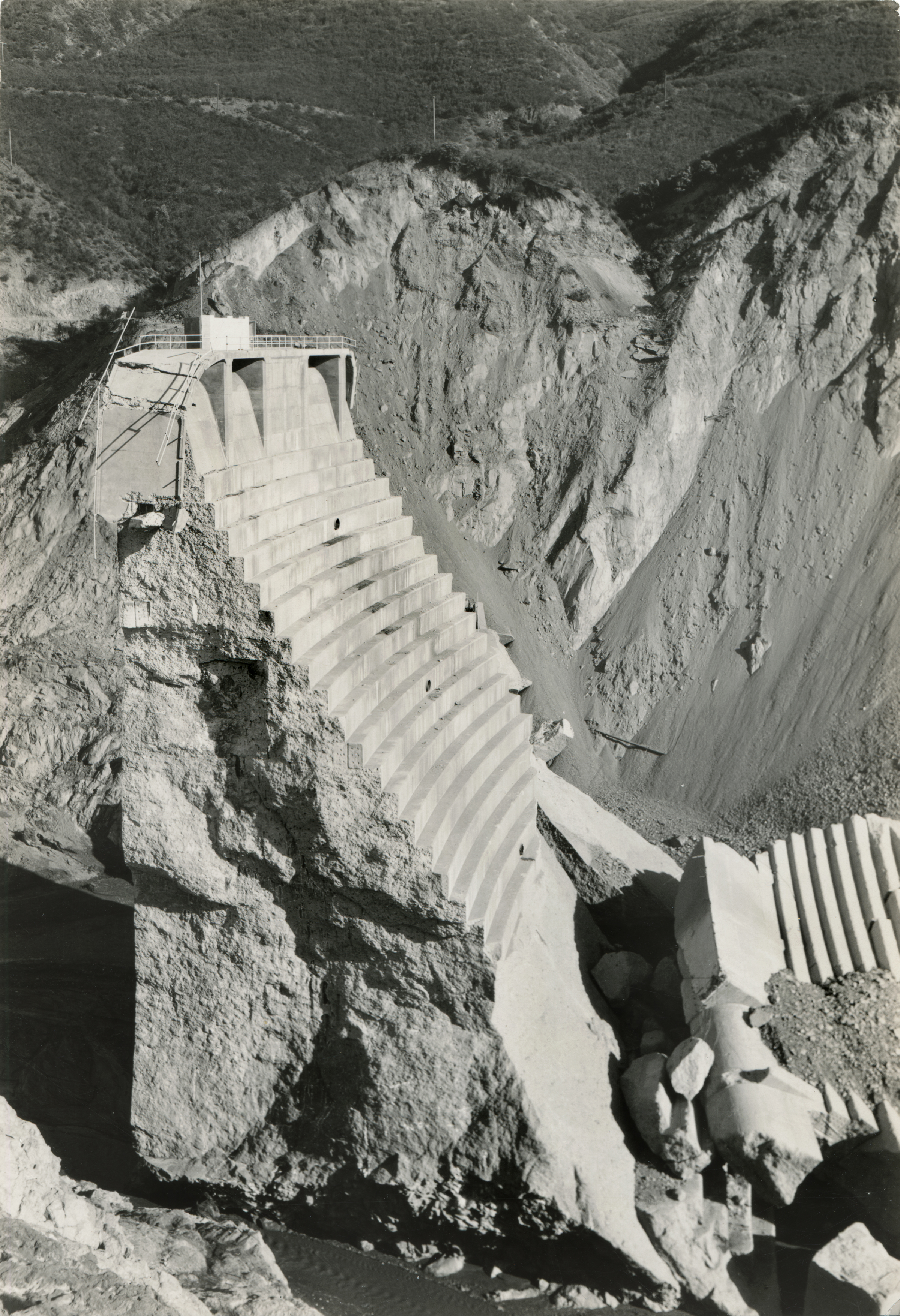

A section of the St. Francis Dam, known as the "tombstone," remained standing after the dam broke on the night of March 12, 1928. To the consternation and embarrassment of Los Angeles water officials, it became a tourist attraction. In May 1929, more than a year later, it was dynamited into oblivion after an adventurous young man fell from the top of it and died.

St. Francis Dam engineering expert J. David Rogers writes:

This view provides a nice perspective on the final resting position of Blocks 5/6, which are sitting on top of Block 7 and many other smaller blocks, likely from the middle portion of the dam's "missing section" (between Blocks 2/3/4 and Blocks 5/6/7). Note how Blok 5 has dropped about 30 to 40 feet below the location where it cleaved off the downstream steps of Block 1, below elevation 1685. This was likely because the thick "pillow" of landslide debris was sluiced downstream by the outpouring waters of the reservoir, after the initial slide.

Note the telephone pole(s) on top of the landslide headscarp in the background. This was part of the Edison Company's 70 Kv Borel Power Line that ran up the San Francisquito Canyon, crossing from the northwest to southeast side of the canyon just downstream of the St. Francis Dam. At this location, that pole was situated near elevation 1995 feet, around 155 feet above the dam's crest. There was another tandem set of poles at a lower elevation, that were within the left abutment landslide, downstream of the dam's left abutment (near elevation 1875). The power along this line went out at 11:57:30 PM, causing a brief surge on the City's power lines, noted in the operator's log at San Francisquito Powerhouse No 1. This evidence suggest that the left abutment landslide occurred at this instant, initiating the failure sequence.

Photograph shot on or shorly after March 13, 1928. The dam collapsed at 23:57:30 on March 12 and it took about 72 minutes for the 12.5-billion-gallon reservoir to empty (Outland 1977).

About the image: One of seventeen 5x7-inch glossy photographs found in a box in the Photography section of the San Francisco Public Utilities Commission's Engineering Archives in 2013.^[1] There was no record of the origin of the photographs and no writing on the back to identify subjects or dates. Current SFPUC staff members did not know the reason for their inclusion in the archive.

Ownership transferred via email communications (on file) from SFPUC to SCVTV-SCVHistory.com. Prints received July 11, 2014; subsequently transferred to the Santa Clarita Valley Historical Society.

1. A hand-written notation by current San Francisco PUC staff indicates the images were emailed Aug. 8, 2013, to someone who identified them as the St. Francis Dam. SFPUC staff alerted us to their existence in the Spring of 2014.

Construction on the 600-foot-long, 185-foot-high St. Francis Dam started in August 1924. With a 12.5-billion-gallon capacity, the reservoir began to fill with water on March 1, 1926. It was completed two months later.

At 11:57:30 p.m. on March 12, 1928, the dam failed, sending a 180-foot-high wall of water crashing down San Francisquito Canyon. An estimated 411 people lay dead by the time the floodwaters reached the Pacific Ocean south of Ventura 5½ hours later.

It was the second-worst disaster in California history, after the great San Francisco earthquake and fire of 1906, in terms of lives lost — and America's worst civil engineering failure of the 20th Century.
