Southern Pacific Paint Color Equivalents. Colonial Yellow 1930s-1960s: Main exterior body of depot, exterior door panels, fascia (roof gable trim) boards. (Pre-1930s: Used in conjunction with Dark Yellow.) Munsell Color System: 2.5Y 8/6 Model paint: Tru-Color Paint TCP-153 SP Depot Colonial Yellow Dark Yellow Pre-1930s only: Lower half of exerior body of depot. Mixed with sand. Munsell Color System: 10YR 7/8 Light Brown, aka Samoa Brown 1930s-1960s: Exterior trim: Window and door surrounds, corner boards, door stiles and rails, door sash, freight deck trim, architrave, porch columns, column bases and caps. Munsell Color System: 7.5YR 4/4 Model paint: Tru-Color Paint TCP-163 Depot Trim Brown (per Tony Thompson) Amber Pre-1930s only: Usage same as later Samoa Brown. Saugus: Tin room wall color; also wall color of utility room before it was sea foam green (and then cream). Munsell Color System: 10YR 5/6 Moss Green Depot roof color. Wooden shingles were painted green. Later composition roof tiles were green (followed by brown, gray...) Munsell Color System: 10GY 3/4 Cream Waiting room walls, in some instances. Baggage room and record room walls, in some instances. Not necessarily Saugus historically. Munsell Color System: 10YR 8/4 Putty Saugus baggage room walls, (inside) doors, sashes. Munsell Color System: 10YR 8/2 Dark Red Brown Baggage room wainscot color. Note: The baggage room at Saugus has no wainscot. The entire wall is bead board. Munsell Color System: 2.5YR 2/4 (Sash) White (Depot window sashes - exterior) Kelly-Moore #14 Frost (Centerville; see below) Model paint: Floquil R11 Reefer White (discontinued) Equivalent: ModelersDP Airbrush Paint: Reefer White Interior Gray Valspar Ultra Base-C (833124-C), 101-1Y26.875, 107-26.5, 109-1.375, 113-9Y41.875 (best of 2 attempts) Cover type: Valspar Ultra High Gloss Interior+Exterior Paint+Primer NOT Testors Model Master Navy Gloss Gray 4691 Seafoam Green Saugus: Waiting room walls, utility room walls. Model paint: PBL (p-b-l.com) Star Brand STR-08 Sea Foam Green (per Tony Thompson) Interior Green Saugus: Interior trim where seafoam green was used: sashes, doors and trim. (Roughly): Behr 450B-5 Lady Luck (from surviving example on utility room door hinge) Daylight Orange Model paint: Tru-Color TCP-107 SP Southern Pacific Daylight Orange (Maybe?) Behr Aurora Orange 210B-6 Daylight Red Model paint: Tru-Color TCP-106 SP Southern Pacific Daylight Red Boxcar Red Model paint: Tru-Color TCP-211 SP Southern Pacific Freight Car Red Graphite Using: Brouns & Co Linseed Oil and Paint (U.K.): No. 40 Graphite - For Metal Metal primer: Brouns & Co Linseed Oil and Paint (U.K.): Iron Oxide Primer For Metal Other Colors Used at Heritage Junction. Storage Containers (Light Beige) Valspar Ultra White/Base-A, 101-3, 107-17.5, 109-3 Cover type: Valspar Ultra High Gloss Interior+Exterior Paint+Primer Primer: Zinsser Cover Stain, Classic Oil-Base White Display Cases Valspar Ultra White/Base A (untinted) Mitchell Adobe Trim: Behr Red Chipotle S160-7 White: Valspar Ultra White/Base A (untinted) Park Green (Picnic Tables, Trash Cans, etc.) Behr Vine Leaf N400-7 (over Gray Kilz-2 primer) Spray paint: Rust-Oleum Gloss Dark Hunter Green Dark Gray Spray paint: Rust-Oleum Gloss Charcoal Gray Medium Gray Spray paint: Rust-Oleum Gloss Smoke Gray Valspar Base?, 101-4Y42.5, 107-20, 109-1 (over Gray Kilz-2 primer) Fiberglass (interior of Ramona Chapel steeple) Primer: Rust-Oleum Marine Wood and Fiberglass Primer 207014 Cover paint: Rust-Oleum Marine Topside Paint, Gloss White 206999 Primers Metal: Zinsser Cover Stain, Classic Oil-Base Wood, general surfaces: Kilz-2 All Purpose (interior-exterior); gray for dark surfaces Wood, difficult surfaces: Kilz Premium 3 (interior-exterior) Spray, difficult surfaces: Rust-Oleum Universal Bonding Primer (powdery finish) Spray, plastic: Krylon Fusion All-In-One Paint+Primer Galvanized: Rust-Oleum Professional Aluminum Primer SKU 8781402 Lead-based paint: Ecobond Lead Defender PRO 1-Gal Off White Flat Lead Based Paint Treatment and Sealant Notes. Always high gloss unless otherwise noted Spray paint: Always check for "Stops Rust"/Rust protection

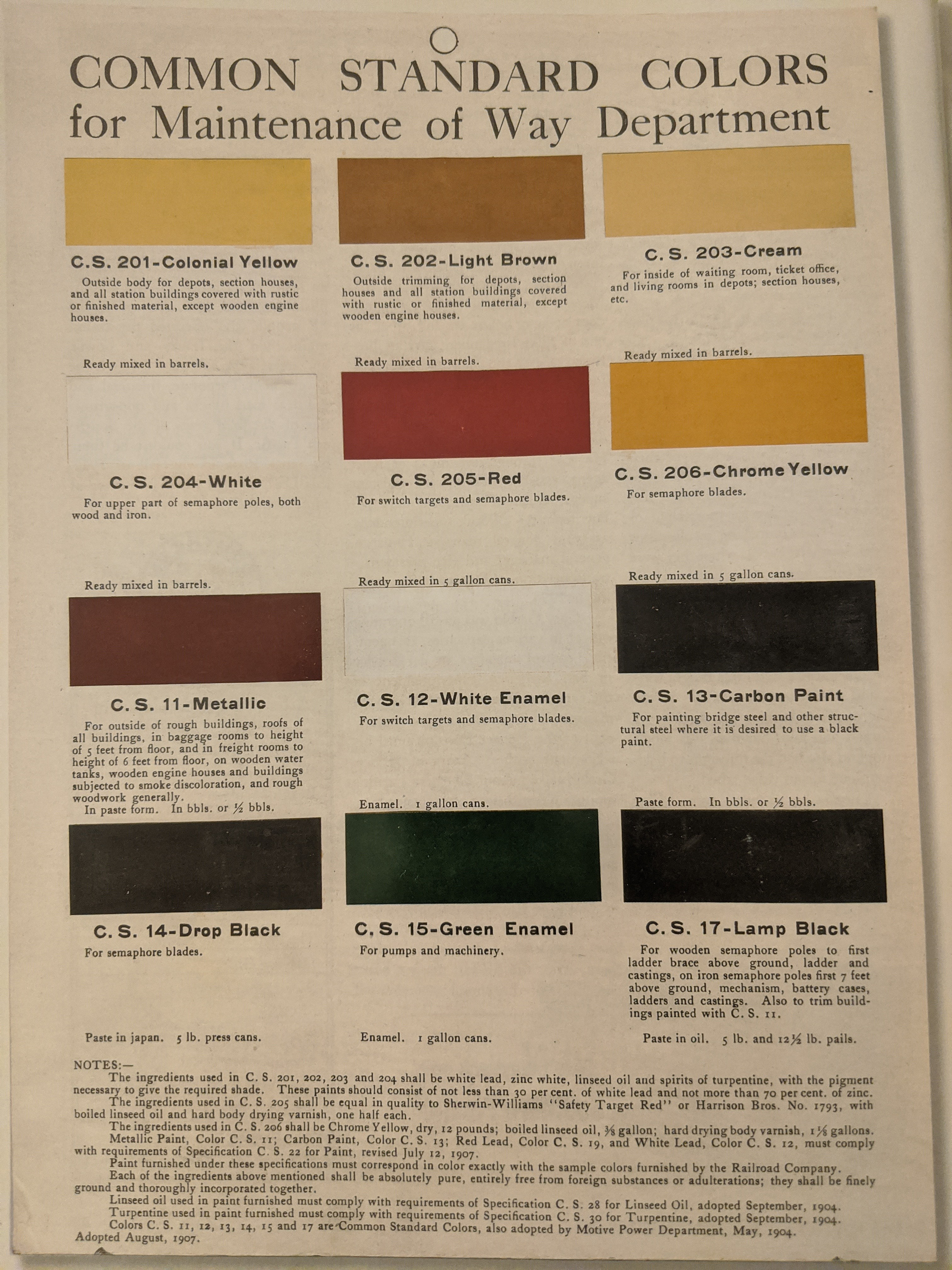

Below: Common Standard Colors as of 1907.
Below: From Centerville Depot Museum, Fremont, Calif.
Below: From Centerville Depot Museum, Fremont, Calif.
|
