Utility Lines Leading Into Saugus Train Station

Heritage Junction Historic Park

Click image to enlarge

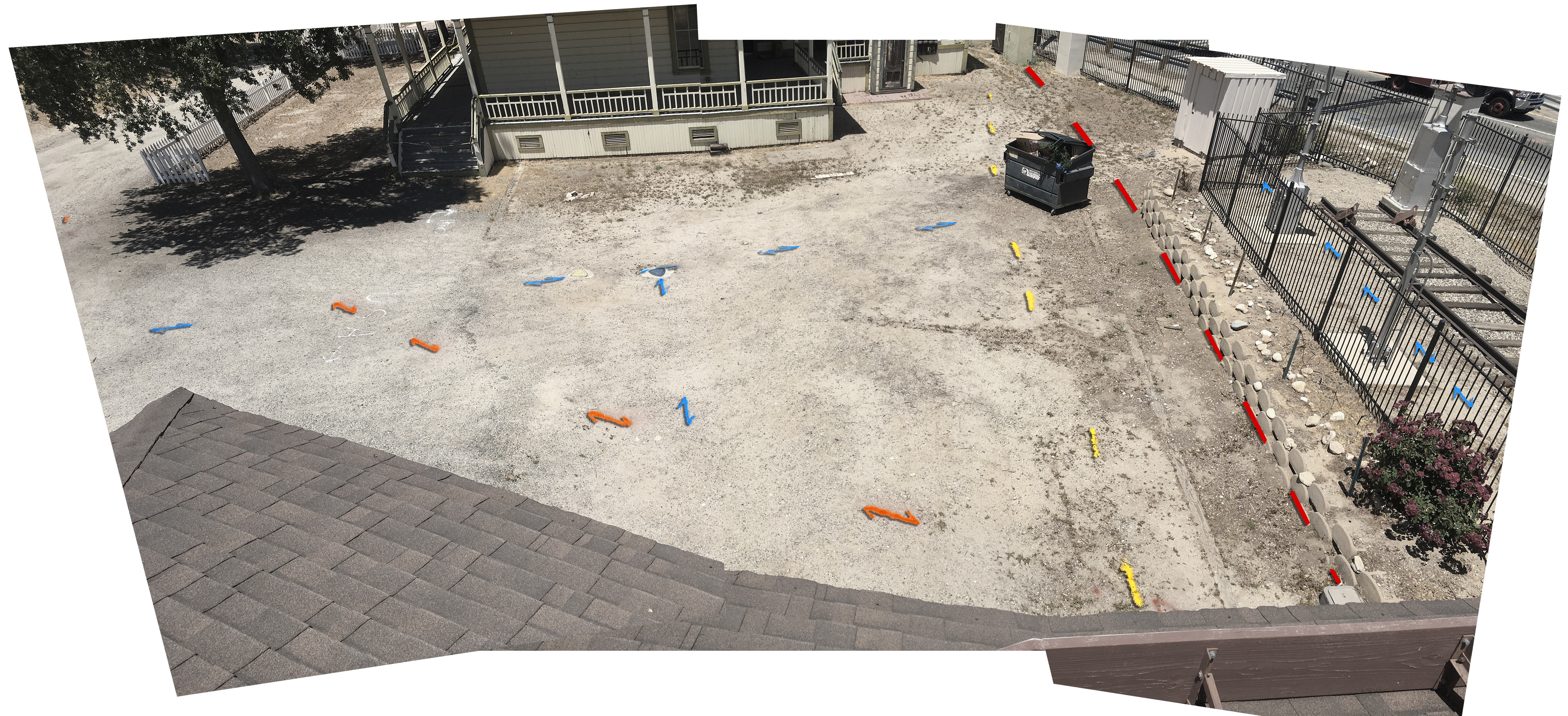

Above: Utility lines between the Newhall Ranch House (top) and Saugus Train Station (bottom) as of May 2021.

Red: electricity

Blue: water

Yellow: gas

Orange: phone and Internet (AT&T)

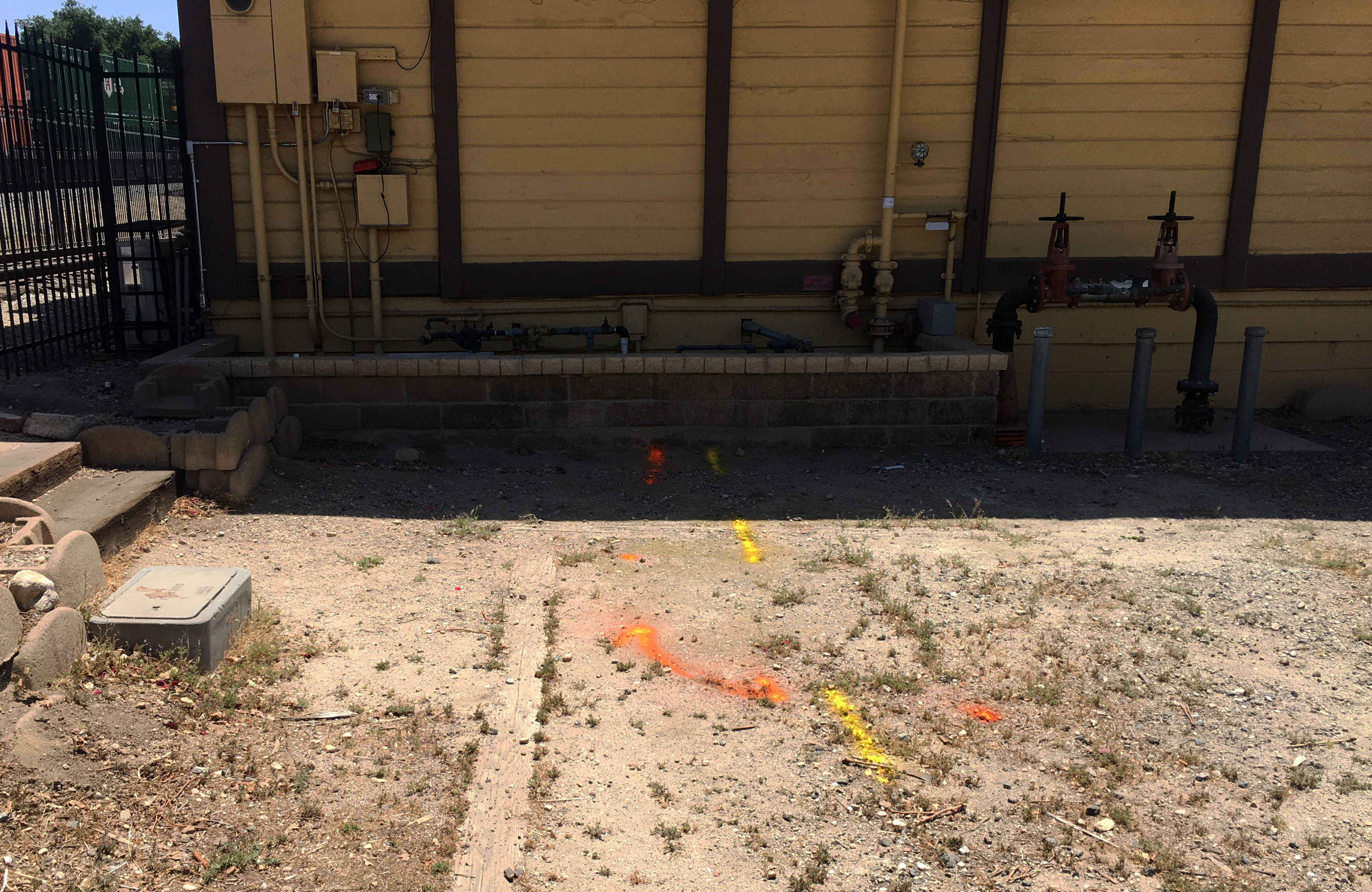

As of May 2021, a new water line is to be laid parallel to and between the gas and electricity, replacing the water line at far right (between the inner fence and train tracks), which is the feed to the train station. The water line at center-left feeds the fire supression system (with the big double check valve backflow supression device seen below).

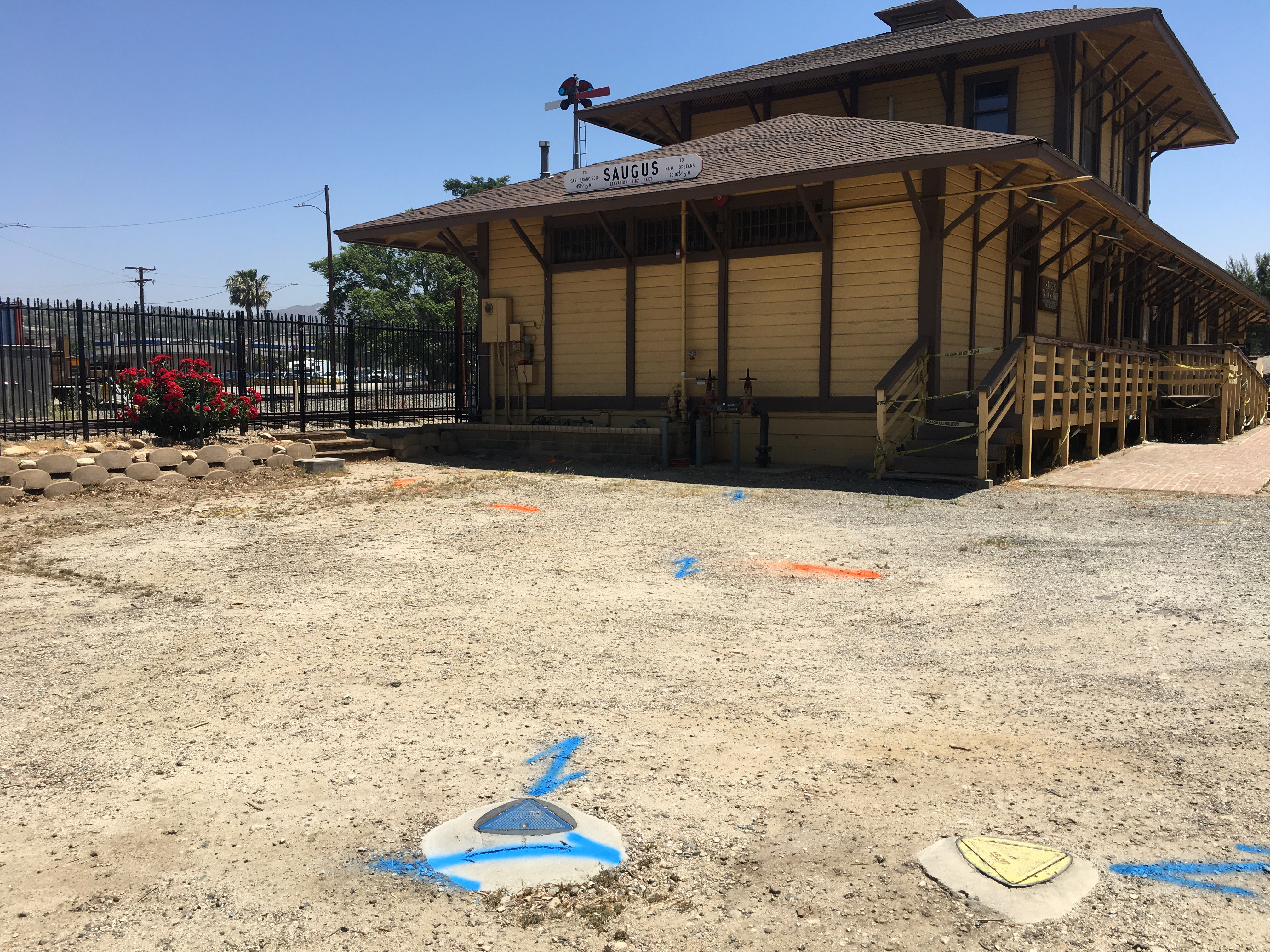

Click image to enlarge. Not shown above: water and electricity.

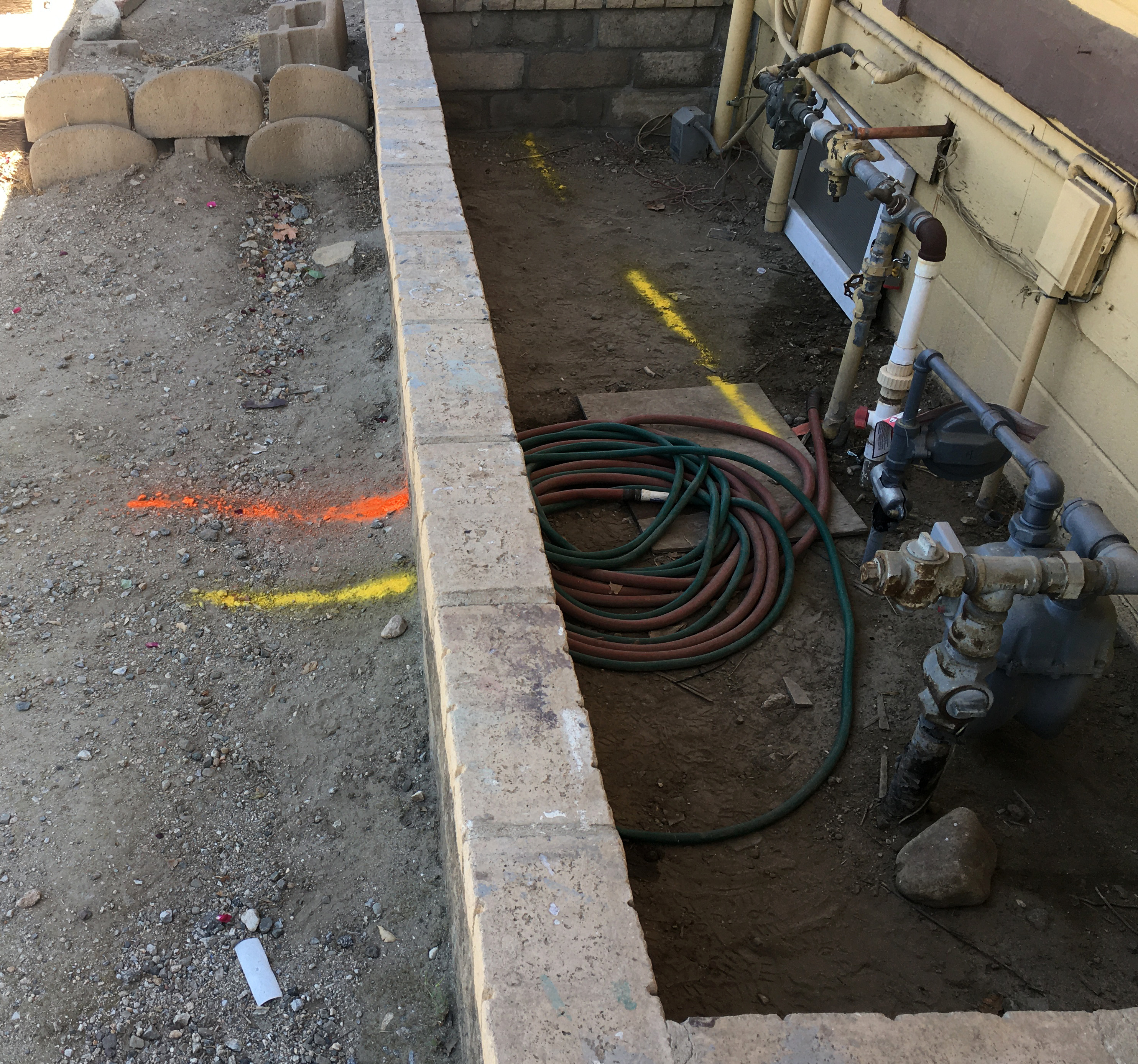

Click image to enlarge. Not shown above: water and electricity.


Click image to enlarge.


LW3785: Digital images by Leon Worden.
